#include <CArcDevice.h>

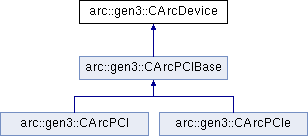

Inheritance diagram for arc::gen3::CArcDevice:

Public Member Functions
	CArcDevice (void)

virtual	~CArcDevice (void)=default

virtual constexpr std::string_view	toString (void)=0

virtual bool	isOpen (void) noexcept

virtual void	open (const std::uint32_t uiDeviceNumber=0)=0

virtual void	open (const std::uint32_t uiDeviceNumber, const std::uint32_t uiBytes)=0

virtual void	open (const std::uint32_t uiDeviceNumber, const std::uint32_t uiRows, const std::uint32_t uiCols)=0

virtual void	close (void)=0

virtual void	reset (void)=0

virtual void	mapCommonBuffer (const std::size_t uiBytes=0)=0

virtual void	unMapCommonBuffer (void)=0

virtual void	reMapCommonBuffer (const std::uint32_t uiBytes=0)

virtual void	fillCommonBuffer (const std::uint16_t uwValue=0)

virtual std::uint8_t *	commonBufferVA (void)

virtual std::uint64_t	commonBufferPA (void)

virtual std::uint64_t	commonBufferSize (void)

virtual std::uint32_t	getId (void)=0

virtual std::uint32_t	getStatus (void)=0

virtual void	clearStatus (void)=0

virtual void	set2xFOTransmitter (bool bOnOff)=0

virtual void	loadDeviceFile (const std::filesystem::path &tFile)=0

virtual std::uint32_t	command (const std::initializer_list< const std::uint32_t > &tCmdList)=0

virtual void	command (const std::initializer_list< const std::uint32_t > &tCmdList, std::uint32_t uiExpectedReply)

virtual std::uint32_t	getControllerId (void)=0

virtual void	resetController (void)=0

virtual bool	isControllerConnected (void)=0

virtual void	setupController (bool bReset, bool bTdl, bool bPower, const std::uint32_t uiRows, const std::uint32_t uiCols, const std::filesystem::path &tTimFile, const std::filesystem::path &tUtilFile=std::filesystem::path(), const std::filesystem::path &tPciFile=std::filesystem::path(), bool *pAbort=nullptr)

virtual void	loadControllerFile (const std::filesystem::path &tFilename, bool bValidate=true, bool *pAbort=nullptr)

virtual void	setImageSize (const std::uint32_t uiRows, const std::uint32_t uiCols)

virtual std::uint32_t	getImageRows (void)

virtual std::uint32_t	getImageCols (void)

virtual std::uint32_t	getCCParams (void)

virtual bool	isCCParamSupported (const std::uint32_t uiParameter)

virtual bool	isCCD (void)

virtual bool	isBinningSet (void)

virtual void	setBinning (const std::uint32_t uiRows, const std::uint32_t uiCols, const std::uint32_t uiRowFactor, const std::uint32_t uiColFactor, std::uint32_t pBinRows=nullptr, std::uint32_t pBinCols=nullptr)

virtual void	unSetBinning (const std::uint32_t uiRows, const std::uint32_t uiCols)

virtual void	setSubArray (std::uint32_t &uiOldRows, std::uint32_t &uiOldCols, const std::uint32_t uiRow, const std::uint32_t uiCol, const std::uint32_t uiSubRows, const std::uint32_t uiSubCols, const std::uint32_t uiBiasOffset, const std::uint32_t uiBiasWidth)

virtual void	unSetSubArray (const std::uint32_t uiRows, const std::uint32_t uiCols)

virtual bool	isSyntheticImageMode (void)

virtual void	setSyntheticImageMode (bool bMode)

virtual void	setOpenShutter (bool bShouldOpen)

virtual void	expose (const float fExpTime, const std::uint32_t uiRows, const std::uint32_t uiCols, const bool pAbort=nullptr, arc::gen3::CExpIFace pExpIFace=nullptr, bool bOpenShutter=true)

virtual void	stopExposure (void)=0

virtual void	continuous (const std::uint32_t uiRows, const std::uint32_t uiCols, const std::uint32_t uiNumOfFrames, const float fExpTime, const bool pAbort=nullptr, arc::gen3::CConIFace pConIFace=nullptr, bool bOpenShutter=true)

virtual void	stopContinuous (void)

virtual bool	isReadout (void)=0

virtual std::uint32_t	getPixelCount (void)=0

virtual std::uint32_t	getCRPixelCount (void)=0

virtual std::uint32_t	getFrameCount (void)=0

virtual bool	containsError (const std::uint32_t uiWord) noexcept

virtual bool	containsError (const std::uint32_t uiWord, const std::uint32_t uiWordMin, const std::uint32_t uiWordMax) noexcept

virtual const std::string	getNextLoggedCmd (void)

virtual std::uint32_t	getLoggedCmdCount (void)

virtual void	setLogCmds (bool bOnOff) noexcept

virtual double	getArrayTemperature (void)

virtual double	getArrayTemperatureDN (void)

virtual void	setArrayTemperature (double gTempVal)

virtual void	loadTemperatureCtrlData (const std::filesystem::path &tFilename)

virtual void	saveTemperatureCtrlData (const std::filesystem::path &tFilename)

Static Public Attributes
static constexpr auto	CTLR_CMD_MAX = static_cast< std::uint32_t >( 6 )

static constexpr auto	READ_TIMEOUT = static_cast< std::uint32_t >( 200 )

static constexpr auto	NOPARAM = static_cast< std::uint32_t >( 0xFF000000 )

Protected Member Functions
virtual bool	getCommonBufferProperties (void)=0

virtual void	setDefaultTemperatureValues (void) noexcept

virtual double	ADUToVoltage (const std::uint32_t uiAdu, bool bArc12=false, bool bHighGain=false) noexcept

virtual double	voltageToADU (const double gVoltage, bool bArc12=false, bool bHighGain=false) noexcept

virtual double	calculateAverageTemperature (void)

virtual double	calculateVoltage (const double gTemperature)

virtual double	calculateTemperature (const double gVoltage)

virtual std::uint32_t	getContinuousImageSize (const std::uint32_t uiImageSize)=0

virtual std::uint32_t	smallCamDLoad (const std::uint32_t uiBoardId, const std::vector< std::uint32_t > *pvData)=0

virtual void	loadSmallCamControllerFile (const std::filesystem::path &tFilename, bool bValidate, bool *pAbort=nullptr)

virtual void	loadGen23ControllerFile (const std::filesystem::path &tFilename, bool bValidate, bool *pAbort=nullptr)=0

virtual void	setByteSwapping (void)=0

virtual const std::string	formatDLoadString (const std::uint32_t uiReply, const std::uint32_t uiBoardId, const std::vector< std::uint32_t > *pvData)

Protected Attributes
double	m_gTmpCtrl_DT670Coeff1

double	m_gTmpCtrl_DT670Coeff2

double	m_gTmpCtrl_SDAduOffset

double	m_gTmpCtrl_SDAduPerVolt

double	m_gTmpCtrl_HGAduOffset

double	m_gTmpCtrl_HGAduPerVolt

double	m_gTmpCtrl_SDVoltTolerance

double	m_gTmpCtrl_SDDegTolerance

std::uint32_t	m_gTmpCtrl_SDNumberOfReads

std::uint32_t	m_gTmpCtrl_SDVoltToleranceTrials

TmpCtrlCoeff_t	m_tTmpCtrl_SD_2_12K

TmpCtrlCoeff_t	m_tTmpCtrl_SD_12_24K

TmpCtrlCoeff_t	m_tTmpCtrl_SD_24_100K

TmpCtrlCoeff_t	m_tTmpCtrl_SD_100_475K

arc::gen3::arcDevHandle_t	m_hDevice

std::unique_ptr< arc::gen3::CArcLog >	m_pCLog

arc::gen3::device::ImgBuf_t	m_tImgBuffer

std::uint32_t	m_uiCCParam

bool	m_bStoreCmds

Detailed Description

ARC PCI/PCIe device class. This is the class for all controller and device driver communications.

See also: arc::gen3::device::CArcDevice

Constructor & Destructor Documentation

◆ CArcDevice()

arc::gen3::CArcDevice::CArcDevice ( void )

Default constructor

◆ ~CArcDevice()

virtual arc::gen3::CArcDevice::~CArcDevice ( void )

virtualdefault

Default destructor

Member Function Documentation

◆ ADUToVoltage()

double arc::gen3::CArcDevice::ADUToVoltage	(	const std::uint32_t	uiAdu,
		bool	bArc12 = `false`,
		bool	bHighGain = `false`
	)

protectedvirtualnoexcept

Calculates the voltage associated with the specified digital number (adu). There is a different calculation for SmallCam, which can be specified via the parameters.

Parameters

uiADU	- The digital number to use for the voltage calculation.
bArc12	- true to use the SmallCam calculation (default = false).
bHighGain	- true if High Gain is used (default = false).

◆ calculateAverageTemperature()

double arc::gen3::CArcDevice::calculateAverageTemperature ( void )

protectedvirtual

Calculates the average array temperature.

Returns: The average temperature value ( in Celcius ). The temperature is read m_gTmpCtrl_SDNumberOfReads times and averaged. Also, for a read to be included in the average the difference between the target temperature and the actual temperature must be less than the tolerance specified by m_gTmpCtrl_SDDegTolerance (default = 3.0 degrees celcius).

Exceptions

std::runtime_error

◆ calculateTemperature()

double arc::gen3::CArcDevice::calculateTemperature ( const double gVoltage )

protectedvirtual

Calculates the silicon diode temperature using a voltage ( converted digital number read from the controller ) and a Chebychev polynomial series.

Parameters

gVoltage - The voltage to use for the temperature calculation.

Returns: The temperature, in Celcius, as calculated from the specified voltage.

Exceptions

std::rumtime_error

◆ calculateVoltage()

double arc::gen3::CArcDevice::calculateVoltage ( const double gTemperature )

protectedvirtual

Calculates the voltage using the specified temperature. The voltage is determined using the number of trials specified by m_gTmpCtrl_SDVoltToleranceTrials. Also, the difference between the target temperature and the actual must be less than the tolerance specified by m_gTmpCtrl_SDVoltTolerance.

Parameters

gTemperature - The temperature to use for the calculation.

Returns: The voltage as calculated from the specified temperature.

Exceptions

std::runtime_error

◆ clearStatus()

virtual void arc::gen3::CArcDevice::clearStatus ( void )

pure virtual

Clears the PCI/PCIe board status register.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ close()

virtual void arc::gen3::CArcDevice::close ( void )

pure virtual

Closes the ARC PCI/PCIe device connection

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ command() [1/2]

virtual std::uint32_t arc::gen3::CArcDevice::command ( const std::initializer_list< const std::uint32_t > & tCmdList )

pure virtual

Send a command to the controller.

Parameters

tCmdList - The command and any arguments to be sent. The command should be the first value, followed by any arguments. e.g. cmd arg0 arg1 etc.

Returns: The controller status reply. Will return the ascii value 'DON' on success, 'ERR' on error, or 'TOUT' on timeout. The timeout value derives from the device driver, while done and error derive from the controller.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ command() [2/2]

void arc::gen3::CArcDevice::command	(	const std::initializer_list< const std::uint32_t > &	tCmdList,
		std::uint32_t	uiExpectedReply
	)

virtual

Send a command to the controller and verify the reply.

Parameters

tCmdList	- The command and any arguments to be sent. The command should be the first value, followed by any arguments. e.g. cmd arg0 arg1 etc.
uiExpectedReply	- The expected controller reply

Exceptions

std::runtime_error

◆ commonBufferPA()

std::uint64_t arc::gen3::CArcDevice::commonBufferPA ( void )

virtual

Returns the kernel image buffer physical address. The returned value should never be accessed by the user. This value is for informational purposes only.

Returns: The kernel image buffer physical address.

◆ commonBufferSize()

std::uint64_t arc::gen3::CArcDevice::commonBufferSize ( void )

virtual

Returns the kernel image buffer size (in bytes). return The kernel image buffer size (in bytes).

◆ commonBufferVA()

std::uint8_t * arc::gen3::CArcDevice::commonBufferVA ( void )

virtual

Returns the kernel image buffer virtual address. The returned value can be used to access the image data.

Returns: A pointer to the kernel image buffer.

◆ containsError() [1/2]

bool arc::gen3::CArcDevice::containsError ( const std::uint32_t uiWord )

virtualnoexcept

Returns whether or not the specified parameter contains one of the error status codes (i.e. 'ERR', 'TOUT', etc).

Parameters

uiWord - The value to check for error status codes. This is typically a command reply value.

Returns: true if an error status code was found; false otherwise.

◆ containsError() [2/2]

bool arc::gen3::CArcDevice::containsError	(	const std::uint32_t	uiWord,
		const std::uint32_t	uiWordMin,
		const std::uint32_t	uiWordMax
	)

virtualnoexcept

Returns whether or not the specified value falls within the specified range.

Parameters

uiWord	- The value to range check
uiWordMin	- The lower range value (inclusive)
uiWordMax	- The upper range value (inclusive)

Returns: true if the specified value falls outside the specified range; false otherwise.

◆ continuous()

void arc::gen3::CArcDevice::continuous	(	const std::uint32_t	uiRows,
		const std::uint32_t	uiCols,
		const std::uint32_t	uiNumOfFrames,
		const float	fExpTime,
		const bool *	pAbort = `nullptr`,
		arc::gen3::CConIFace *	pConIFace = `nullptr`,
		bool	bOpenShutter = `true`
	)

virtual

Start continuous image aquisition.

Parameters

uiRows	- The image row size ( in pixels ).
uiCols	- The image column size ( in pixels ).
uiNumOfFrames	- The number of image frames to read.
fExpTime	- The exposure time ( in seconds ).
pAbort	- Pointer to a boolean value that can be used to cancel the exposure/readout (default = nullptr).
pConIFace	- Function pointer to a CConIFace object, whose methods are called to provide frame completion updates (default = nullptr).
bOpenShutter	- Set to true if the shutter should open during the exposure. Set to false to keep the shutter closed (default = true).

Exceptions

std::runtime_error

◆ expose()

void arc::gen3::CArcDevice::expose	(	const float	fExpTime,
		const std::uint32_t	uiRows,
		const std::uint32_t	uiCols,
		const bool *	pAbort = `nullptr`,
		arc::gen3::CExpIFace *	pExpIFace = `nullptr`,
		bool	bOpenShutter = `true`
	)

virtual

Start image aquisition

Parameters

fExpTime	- The exposure time ( in seconds ).
uiRows	- The image row size ( in pixels ).
uiCols	- The image column size ( in pixels ).
pAbort	- Pointer to a boolean value that can be used to cancel the exposure/readout (default = nullptr).
pExpIFace	- Function pointer to a CExpIFace object, whose methods are called during exposure and readout to provide exposure time and pixel count updates (default = nullptr).
bOpenShutter	- Set to true if the shutter should open during the exposure. Set to false to keep the shutter closed (default = true).

Exceptions

std::runtime_error

◆ fillCommonBuffer()

void arc::gen3::CArcDevice::fillCommonBuffer ( const std::uint16_t uwValue = 0 )

virtual

Fill the kernel image buffer with the specified value. uwValue - The unsigned 16-bit value used to fill the image buffer (default = 0 ). throws std::invalid-argument

◆ formatDLoadString()

const std::string arc::gen3::CArcDevice::formatDLoadString	(	const std::uint32_t	uiReply,
		const std::uint32_t	uiBoardId,
		const std::vector< std::uint32_t > *	pvData
	)

protectedvirtual

Bundle command values into a std::string that can be used to throw a std::runtime_error exception.

Parameters

uiReply	- The controller command reply
uiBoardId	- The board id
pvData	- The controller command data in the format: command, argument 0, argument 1, etc.

Returns: A command and reply string formatted as follows: "[0xheader, 0xcommand, 0xargument, ... -> 0xreply]"

Exceptions

std::runtime_error

◆ getArrayTemperature()

double arc::gen3::CArcDevice::getArrayTemperature ( void )

virtual

Returns the current array temperature in degrees celcuis. The temperature is read m_gTmpCtrl_SDNumberOfReads times and averaged. Also, for a read to be included in the average, the difference between the target temperature and the actual temperature must be less than the tolerance specified by gTmpCtrl_SDTolerance.

Returns: The current array temperature in celcius.

Exceptions

std::runtime_error

◆ getArrayTemperatureDN()

double arc::gen3::CArcDevice::getArrayTemperatureDN ( void )

virtual

Returns the digital number associated with the current array temperature value.

Returns: The current array temperature digital number.

Exceptions

std::runtime_error

◆ getCCParams()

std::uint32_t arc::gen3::CArcDevice::getCCParams ( void )

virtual

Returns the controller configuration parameters enable bits. Each bit or set of bits represents a feature available in the controller. The ArcDefs.h file contains the bit definitions. The bit definitions are as follows:

BIT #'s FUNCTION

2,1,0 Video Processor 000 ARC-41 Dual Readout CCD 001 CCD Gen I 010 ARC-42 Dual Readout IR 011 ARC-44 Four Readout IR Coadder ( obsolete ) 100 ARC-45 Dual Readout CCD 101 ARC-46 8-Channel IR 110 ARC-48 8-Channel CCD 111 ARC-47 4-Channel CCD

4,3 Timing Board 00 Rev. 4, Gen II 01 Gen I 10 Rev. 5, Gen III, 250 MHz

6,5 Utility Board 00 No utility board 01 Utility Rev. 3

7 Shutter 0 No shutter support 1 Yes shutter support

9,8 Temperature readout 00 No temperature readout 01 Polynomial Diode calibration 10 Linear temperature sensor calibration

10 Subarray readout 0 Not supported 1 Yes supported

11 Binning 0 Not supported 1 Yes supported

12 Split-Serial readout 0 Not supported 1 Yes supported

13 Split-Parallel readout 0 Not supported 1 Yes supported

14 MPP = Inverted parallel clocks 0 Not supported 1 Yes supported

16,15 Clock Driver Board 00 Rev. 3 11 No clock driver board (Gen I)

19,18,17 Special implementations 000 Somewhere else 001 Mount Laguna Observatory 010 NGST Aladdin 011 2x FO Transmitter xxx Other

20 Continuous readout 0 Not supported 1 Yes supported

21 Selectable readout speeds

See also: ArcDefs.h

Returns: The controller configuration parameter dword value

Exceptions

std::runtime_error

◆ getCommonBufferProperties()

virtual bool arc::gen3::CArcDevice::getCommonBufferProperties ( void )

protectedpure virtual

Internally fills the kernel image buffer physical address and size from the device driver.

Returns: true if the properties were successfully read from the driver; false on error.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getContinuousImageSize()

virtual std::uint32_t arc::gen3::CArcDevice::getContinuousImageSize ( const std::uint32_t uiImageSize )

protectedpure virtual

Returns the boundary adjusted image size for continuous readout. Some interface cards require the data to be written on the start of a specific byte boundary. See the PCI/PCIe headers for specific information on that device.

Parameters

uiImageSize - The image size, in bytes, that will be adjusted to meet the needs of the specific device.

Returns: The adjusted image size for any device specific boundary conditions.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCIe.

◆ getControllerId()

virtual std::uint32_t arc::gen3::CArcDevice::getControllerId ( void )

pure virtual

Returns the controller id. The returned value will identify the controller as GenII, GenIII or SmallCam.

Returns: Returns ascii 'SC0' for SmallCam or the controller id or ascii 'ERR' if no id exists.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getCRPixelCount()

virtual std::uint32_t arc::gen3::CArcDevice::getCRPixelCount ( void )

pure virtual

Returns the cumulative pixel count across all frames read while in continuous readout mode.

Returns: The cumulative continuous readout pixel count.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getFrameCount()

virtual std::uint32_t arc::gen3::CArcDevice::getFrameCount ( void )

pure virtual

Returns the current continuous readout frame count. The controller must be in continuous readout mode Note: this method will log the value if logging is enabled.

Returns: The current frame count.

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getId()

virtual std::uint32_t arc::gen3::CArcDevice::getId ( void )

pure virtual

Returns the PCI/PCIe board id.

Returns: Returns a unique identifier for the PCI/PCIe board.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getImageCols()

std::uint32_t arc::gen3::CArcDevice::getImageCols ( void )

virtual

Returns the image column dimension in pixels from the controller.

Returns: The image column size in pixels

Exceptions

std::runtime_error

◆ getImageRows()

std::uint32_t arc::gen3::CArcDevice::getImageRows ( void )

virtual

Returns the image row dimension in pixels from the controller.

Returns: The image row size in pixels

Exceptions

std::runtime_error

◆ getLoggedCmdCount()

std::uint32_t arc::gen3::CArcDevice::getLoggedCmdCount ( void )

virtual

Returns the number of messages remaining in the command logger.

Returns: The command logger message count.

◆ getNextLoggedCmd()

const std::string arc::gen3::CArcDevice::getNextLoggedCmd ( void )

virtual

Pops and returns the next logged message from the command logger.

Returns: The next message in the command logger or an empty string if there are no more messages.

◆ getPixelCount()

virtual std::uint32_t arc::gen3::CArcDevice::getPixelCount ( void )

pure virtual

Returns the current pixel count during image aquisition. Note: this method will log the value if logging is enabled.

Returns: The current pixel count

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ getStatus()

virtual std::uint32_t arc::gen3::CArcDevice::getStatus ( void )

pure virtual

Returns the PCI/PCIe board status. The content and meaning of the returned value depends upon which board is being used.

Returns: The PCI/PCIe board status

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ isBinningSet()

bool arc::gen3::CArcDevice::isBinningSet ( void )

virtual

Returns whether or not binning is enalbed on the controller

Returns: true if binning is enabled on the controller; false otherwise.

Exceptions

std::runtime_error

◆ isCCD()

bool arc::gen3::CArcDevice::isCCD ( void )

virtual

Returns whether or not the controller controller contains a CCD or infrared video processor.

Returns: true if the controller contains a CCD video processor; false for infrared.

Exceptions

std::runtime_error

◆ isCCParamSupported()

bool arc::gen3::CArcDevice::isCCParamSupported ( const std::uint32_t uiParameter )

virtual

Returns whether or not a specific controller parameter is supported.

Parameters

uiParameter - A valid contoller parameter as defined in the ArcDefs.h file. For example, use SUBARRAY from the ArcDefs.h file to check if the controller supports the sub-array feature.

Returns: true if the specified parameter value is supported by the controller; false otherwise.

Exceptions

std::runtime_error

◆ isControllerConnected()

virtual bool arc::gen3::CArcDevice::isControllerConnected ( void )

pure virtual

Returns whether or not a controller is connected and powered-on.

Returns: true if a controller is connected; false otherwise.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ isOpen()

bool arc::gen3::CArcDevice::isOpen ( void )

virtualnoexcept

Returns whether or not an ARC PCI/PCIe device has been opened ( i.e. if the open() method has been called ).

Returns: true if the open() method has been successfully called; false otherwise.

Reimplemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ isReadout()

virtual bool arc::gen3::CArcDevice::isReadout ( void )

pure virtual

Returns whether or not image readout is in progress.

Returns: true if the controller is currently reading out image pixels; false otherwise.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ isSyntheticImageMode()

bool arc::gen3::CArcDevice::isSyntheticImageMode ( void )

virtual

Returns whether or not the controller is in synthetic mode. A synthetic image is one that is generated by the timing board DSP, not the video board, and has the following pattern: 0, 1, 2, ..., 65535, 0, 1, 2, ..., 65353, etc.

Returns: true if the controller is in synthetic mode; false otherwise.

Exceptions

std::runtime_error

◆ loadControllerFile()

void arc::gen3::CArcDevice::loadControllerFile	(	const std::filesystem::path &	tFilename,
		bool	bValidate = `true`,
		bool *	pAbort = `nullptr`
	)

virtual

Loads the specified timing, utility or smallCam firmware file onto the controller.

Parameters

tFilename	- The DSP firmware timing file to load.
bValidate	- truw to validate each write by following it with a read and compare; false to not validate ( default = true ).
pAbort	- Pointer used to cancel execution ( default = nullptr ).

Exceptions

std::runtime_error

◆ loadDeviceFile()

virtual void arc::gen3::CArcDevice::loadDeviceFile ( const std::filesystem::path & tFile )

pure virtual

Load a PCI/PCIe DSP firmware file.

Parameters

tFile - A valid PCI/PCIe DSP firmware file.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ loadGen23ControllerFile()

virtual void arc::gen3::CArcDevice::loadGen23ControllerFile	(	const std::filesystem::path &	tFilename,
		bool	bValidate,
		bool *	pAbort = `nullptr`
	)

protectedpure virtual

Loads a timing or utility file (.lod) into a GenII or GenIII controller.

Parameters

tFilename	- The TIM or UTIL lod file to load.
bValidate	- true if the download should be read back and checked after every write; false to not check.
pAbort	- true to cancel execution; false otherwise (default = nullptr).

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCIe.

◆ loadSmallCamControllerFile()

void arc::gen3::CArcDevice::loadSmallCamControllerFile	(	const std::filesystem::path &	tFilename,
		bool	bValidate,
		bool *	pAbort = `nullptr`
	)

protectedvirtual

Loads a timing or utility file (.lod) into a SmallCam controller.

Parameters

tFilename	- The TIM or UTIL lod file to load.
bValidate	- true if the download should be read back and checked after every write; false to not check.
pAbort	- true to cancel execution; false otherwise (default = nullptr).

Exceptions

std::runtime_error

◆ loadTemperatureCtrlData()

void arc::gen3::CArcDevice::loadTemperatureCtrlData ( const std::filesystem::path & tFilename )

virtual

Loads temperature control constants from the specified file. The default constants are stored in TempCtrl.h and cannot be permanently overwritten.

Parameters

tFilename - The file that contains the temperature control constant values.

Exceptions

std::runtime_error
std::invalid_argument

◆ mapCommonBuffer()

virtual void arc::gen3::CArcDevice::mapCommonBuffer ( const std::size_t uiBytes = 0 )

pure virtual

Maps the specified number of bytes from the kernel image buffer into user space. uiBytes - The number of bytes to map from the kernel image buffer. This value must not exceed the actual size of the buffer, which is 4200x4200x2 bytes by default (default = 0).

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ open() [1/3]

virtual void arc::gen3::CArcDevice::open	(	const std::uint32_t	uiDeviceNumber,
		const std::uint32_t	uiBytes
	)

pure virtual

Open a connection to the specified ARC PCI/PCIe device. This method maps all or part of the kernel image buffer into user space.

Parameters

uiDeviceNumber	- The device driver number 0 to N ( default = 0 ). Use 0 for a single ARC PCI/PCIe board.
uiBytes	- The number of bytes to map from the kernel image buffer. This value must not exceed the actual size of the buffer, which is 4200x4200x2 bytes by default.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ open() [2/3]

virtual void arc::gen3::CArcDevice::open	(	const std::uint32_t	uiDeviceNumber,
		const std::uint32_t	uiRows,
		const std::uint32_t	uiCols
	)

pure virtual

Open a connection to the specified ARC PCI/PCIe device. This method maps all or part of the kernel image buffer into user space.

Parameters

uiDeviceNumber	- The device driver number 0 to N ( default = 0 ). Use 0 for a single ARC PCI/PCIe board.
uiRows	- The number of rows to map from the kernel image buffer. This value must not exceed the default row size of the default kernel buffer row size of 4200 pixels.
uiCols	- The number of columns to map from the kernel image buffer. This value must not exceed the default column size of the default kernel buffer column size of 4200 pixels.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ open() [3/3]

virtual void arc::gen3::CArcDevice::open ( const std::uint32_t uiDeviceNumber = 0 )

pure virtual

Open a connection to the specified ARC PCI/PCIe device. This method does not map the kernel image buffer into user space.

Parameters

uiDeviceNumber - The device driver number 0 to N ( default = 0 ). Use 0 for a single ARC PCI/PCIe board.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ reMapCommonBuffer()

void arc::gen3::CArcDevice::reMapCommonBuffer ( const std::uint32_t uiBytes = 0 )

virtual

Re-maps the kernel image buffer into user space by first calling unMapCommonBuffer(), then calling mapCommonBuffer(). This is purely a convenience method to change the user space mapped size of the kernel image buffer. uiBytes - The number of bytes to map from the kernel image buffer. This value must not exceed the actual size of the buffer, which is 4200x4200x2 bytes by default (default = 0).

See also: mapCommonBuffer; unMapCommonBuffer

Exceptions

std::runtime_error

◆ reset()

virtual void arc::gen3::CArcDevice::reset ( void )

pure virtual

Reset the ARC PCI/PCIe device

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ resetController()

virtual void arc::gen3::CArcDevice::resetController ( void )

pure virtual

Resets the controller by disabling power to the boards and reloading the DSP boot code from ROM.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ saveTemperatureCtrlData()

void arc::gen3::CArcDevice::saveTemperatureCtrlData ( const std::filesystem::path & tFilename )

virtual

Saves the current temperature control constants to the specified file. These may be different from the values in TempCtrl.h if another temperature control file has been previously loaded.

Parameters

tFilename - The file in which to write the temperature control data.

Exceptions

std::runtime_error

◆ set2xFOTransmitter()

virtual void arc::gen3::CArcDevice::set2xFOTransmitter ( bool bOnOff )

pure virtual

Enables or disables the second fiber optic transmitter on supporting timing boards.

Parameters

bOnOff - true to tnable the second transmitter; false otherwise.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ setArrayTemperature()

void arc::gen3::CArcDevice::setArrayTemperature ( double gTempVal )

virtual

Set the temperature that the array should be regulated around.

Parameters

gTempVal - The temperature, in celcius, that the array should be regulated around.

Exceptions

std::runtime_error

◆ setBinning()

void arc::gen3::CArcDevice::setBinning	(	const std::uint32_t	uiRows,
		const std::uint32_t	uiCols,
		const std::uint32_t	uiRowFactor,
		const std::uint32_t	uiColFactor,
		std::uint32_t *	pBinRows = `nullptr`,
		std::uint32_t *	pBinCols = `nullptr`
	)

virtual

Enable binning on the controller by setting the binning factors. Binning causes each axis to combine xxxFactor number of pixels. For example, if rows = 1000, cols = 1000, rowFactor = 2 and colFactor = 4, then binRows = 500 and binCols = 250.

Parameters

uiRows	- The pre-binning number of rows.
uiCols	- The pre-binning number of columns.
uiRowFactor	- The row binning factor. i.e. the number of row pixels to combine.
uiColFactor	- The column binning factor. i.e. the number of column pixels to combine.
pBinRows	- An optional pointer to receive the new binned image row pixel dimension (default = nullptr).
pBinCols	- An optional pointer to receive the new binned image column pixel dimension (default = nullptr).

Exceptions

std::runtime_error

◆ setByteSwapping()

virtual void arc::gen3::CArcDevice::setByteSwapping ( void )

protectedpure virtual

This is an outdated method purely left in for compatability. This turns the PCI hardware byte-swapping on if system architecture is solaris. Otherwise, does nothing; compiles to empty method and will likely be optimized out by the compiler.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCIe.

◆ setDefaultTemperatureValues()

void arc::gen3::CArcDevice::setDefaultTemperatureValues ( void )

protectedvirtualnoexcept

Initializes the default array temperature settings. Called from class constructor.

◆ setImageSize()

void arc::gen3::CArcDevice::setImageSize	(	const std::uint32_t	uiRows,
		const std::uint32_t	uiCols
	)

virtual

Set the image dimensions on the controller. This method will auto re-map the image buffer if the new dimensions exceed the exising map size but are less than the maximum buffer size.

Parameters

uiRows	- The number of pixel rows in the image.
uiCols	- The number of pixel columns in the image.

Exceptions

std::runtime_error

◆ setLogCmds()

void arc::gen3::CArcDevice::setLogCmds ( bool bOnOff )

virtualnoexcept

Turns command logging on/off. Command logging will slow the execution of any method implementing it. This logging can be used for debugging to see command details in the following form: <header> <cmd> <arg1> ... <arg4> -> <controller reply>

Example: 0x203 TDL 0x112233 -> 0x444E4F

Parameters

bOnOff - true to enable command logging; false to disable.

◆ setOpenShutter()

void arc::gen3::CArcDevice::setOpenShutter ( bool bShouldOpen )

virtual

Enable or disable the shutter on expose.

Parameters

bShouldOpen - true if the shutter should open during the exposure; false to keep the shutter closed (i.e. dark frame). throws std::runtime_error

◆ setSubArray()

void arc::gen3::CArcDevice::setSubArray	(	std::uint32_t &	uiOldRows,
		std::uint32_t &	uiOldCols,
		const std::uint32_t	uiRow,
		const std::uint32_t	uiCol,
		const std::uint32_t	uiSubRows,
		const std::uint32_t	uiSubCols,
		const std::uint32_t	uiBiasOffset,
		const std::uint32_t	uiBiasWidth
	)

virtual

Sets the controller to sub-array mode, which allows the user to read a sub-section of the array and bias regions.

+--------------------—+---------—+ | | | | BOX | BIAS | |<-------------—5----—> | | <–4--> | | | | +----—+^ | +----—+ | | | || | | | | |<---—|-->2 |3 | |<–6-->| | | | ^ || | | | |

+—	—+v	+----—+

| 1 | | | | | | | v | | +--------------------—+---------—+

Parameters

uiOldRows	- Returns the original row size currently set on the controller
uiOldCols	- Returns the original col size currently set on the controller
uiRow	- The row number of the center of the sub-array in pixels (see #1 in the above figure)
uiCol	- The col number of the center of the sub-array in pixels (see #2 in the above figure)
uiSubRows	- The sub-array row count in pixels (see #3 in the above figure)
uiSubCols	- The sub-array col count in pixels (see #4 in the above figure)
uiBiasOffset	- The offset of the bias region in pixels (see #5 in the above figure)
uiBiasCols	- The col count of the bias region in pixels (see #6 in the above figure)
throws	std::runtime_error

◆ setSyntheticImageMode()

void arc::gen3::CArcDevice::setSyntheticImageMode ( bool bMode )

virtual

Enables or disable synthetic image mode on the controller. A synthetic image is one that is generated by the timing board DSP, not the video board, and has the following pattern: 0, 1, 2, ..., 65535, 0, 1, 2, ..., 65353, etc.

Parameters

bMode - true to enable synthetic image mode; false to disable.

Exceptions

std::runtime_error

◆ setupController()

void arc::gen3::CArcDevice::setupController	(	bool	bReset,
		bool	bTdl,
		bool	bPower,
		const std::uint32_t	uiRows,
		const std::uint32_t	uiCols,
		const std::filesystem::path &	tTimFile,
		const std::filesystem::path &	tUtilFile = `std::filesystem::path()`,
		const std::filesystem::path &	tPciFile = `std::filesystem::path()`,
		bool *	pAbort = `nullptr`
	)

virtual

Initializes the controller, which must be attached to an ARC PCI/PCIe and powered on. An optional data link test, which verifies that the communications link between the host computer and the controller is also available. Any test command sent after the file load will be processed by the controller timing board on-board processor. Prior to this, the tests will be processed by the controller timing board hardware itself. With a test data link value of zero this method is identical to calling loadFile.

Parameters

bReset	- true to reset the controller; false otherwise.
bTdl	- true to test the PCI/PCIe-controller data link; false otherwise. Which board are tested depends on which board DSP files are uploaded. For example, if a timing file is uploaded, then the data link to the timing board is tested.
bPower	- true to power-on the controller; false otherwise.
uiRows	- The number of image rows to be used by the controller.
uiCold	- The number of image columns to be used by the controller.
tTimFile	- The DSP firmware timing board file to upload to the controller.
tUtilFile	- The DSP firmware utility board file to upload to the controller (optional, not used by default).
tPciFile	- The DSP firmware ARC-64 PCI board file to upload (optional, not used by default).
pAbort	- A pointer to a boolean that can be used to cancel execution (default = nullptr ).

Exceptions

std::runtime_error

◆ smallCamDLoad()

virtual std::uint32_t arc::gen3::CArcDevice::smallCamDLoad	(	const std::uint32_t	uiBoardId,
		const std::vector< std::uint32_t > *	pvData
	)

protectedpure virtual

Sends a DSP firmware (.lod) file data stream of up to six values to the SmallCam controller.

Parameters

uiBoardId	- Must be SMALLCAM_DLOAD_ID
pvData	- Data vector of up to six download values

Returns: The controller reply value. Typically 'DON' or 'ERR'.

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCIe.

◆ stopContinuous()

void arc::gen3::CArcDevice::stopContinuous ( void )

virtual

Attempts to stop the current frame aquisition and set the controller back to single image aquisition.

Exceptions

std::runtime_error

◆ stopExposure()

virtual void arc::gen3::CArcDevice::stopExposure ( void )

pure virtual

Attempts to stop the current exposure

Exceptions

std::runtime_error

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ toString()

virtual constexpr std::string_view arc::gen3::CArcDevice::toString ( void )

constexprpure virtual

Returns a textual representation of the class.

Returns: A string representation of the class.

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ unMapCommonBuffer()

virtual void arc::gen3::CArcDevice::unMapCommonBuffer ( void )

pure virtual

Un-maps the kernel image buffer from user space. The buffer should not be accessed once it's un-mapped.

Exceptions

std::invalid_argument

Implemented in arc::gen3::CArcPCI, and arc::gen3::CArcPCIe.

◆ unSetBinning()

void arc::gen3::CArcDevice::unSetBinning	(	const std::uint32_t	uiRows,
		const std::uint32_t	uiCols
	)

virtual

Disable binning on the controller and set the image dimensions to the specified size, which is typically a previously saved image dimension.

Parameters

uiRows	- The new image row size
uiCols	- The new image column size

Exceptions

std::runtime_error

◆ unSetSubArray()

void arc::gen3::CArcDevice::unSetSubArray	(	const std::uint32_t	uiRows,
		const std::uint32_t	uiCols
	)

virtual

Disable sub-array mode on the controller

Parameters

uiRows	- The new image row dimension to set on the controller (typically a previously saved value)
uiCols	- The new image column dimension to set on the controller (typically a previously saved value)

Exceptions

std::runtimer_error

◆ voltageToADU()

double arc::gen3::CArcDevice::voltageToADU	(	const double	gVoltage,
		bool	bArc12 = `false`,
		bool	bHighGain = `false`
	)

protectedvirtualnoexcept

Calculates the digital number (adu) associated with the specified voltage. There is a different calculation for SmallCam, which can be specified via the parameters.

Parameters

gVoltage	- The voltage to use for the calculation.
bArc12	- true to use the SmallCam calculation (default = false).
bHighGain	- true if High Gain is used (default = false).

Member Data Documentation

◆ CTLR_CMD_MAX

constexpr auto arc::gen3::CArcDevice::CTLR_CMD_MAX = static_cast< std::uint32_t >( 6 )

staticconstexpr

Maximum number of command parameters the controller will accept

◆ m_bStoreCmds

bool arc::gen3::CArcDevice::m_bStoreCmds

protected

true to store commanmd strings in logger

◆ m_gTmpCtrl_DT670Coeff1

double arc::gen3::CArcDevice::m_gTmpCtrl_DT670Coeff1

protected

Temperature Coeffient for DT-670 Sensor

◆ m_gTmpCtrl_DT670Coeff2

double arc::gen3::CArcDevice::m_gTmpCtrl_DT670Coeff2

protected

Temperature Coeffient for DT-670 Sensor

◆ m_gTmpCtrl_HGAduOffset

double arc::gen3::CArcDevice::m_gTmpCtrl_HGAduOffset

protected

ADU offset for high gain utility board

◆ m_gTmpCtrl_HGAduPerVolt

double arc::gen3::CArcDevice::m_gTmpCtrl_HGAduPerVolt

protected

ADU per volt for high gain utility board

◆ m_gTmpCtrl_SDAduOffset

double arc::gen3::CArcDevice::m_gTmpCtrl_SDAduOffset

protected

ADU offset for CY7 Sensor

◆ m_gTmpCtrl_SDAduPerVolt

double arc::gen3::CArcDevice::m_gTmpCtrl_SDAduPerVolt

protected

ADU per volt for CY7 Sensor

◆ m_gTmpCtrl_SDDegTolerance

double arc::gen3::CArcDevice::m_gTmpCtrl_SDDegTolerance

protected

Temerature tolerance for non-linear silicone diode

◆ m_gTmpCtrl_SDNumberOfReads

std::uint32_t arc::gen3::CArcDevice::m_gTmpCtrl_SDNumberOfReads

protected

Number of temperature reads to average for non-linear silicone diode

◆ m_gTmpCtrl_SDVoltTolerance

double arc::gen3::CArcDevice::m_gTmpCtrl_SDVoltTolerance

protected

Voltage tolerance for non-linear silicone diode

◆ m_gTmpCtrl_SDVoltToleranceTrials

std::uint32_t arc::gen3::CArcDevice::m_gTmpCtrl_SDVoltToleranceTrials

protected

Number of voltage tolerance trials for non-linear silicone diode

◆ m_hDevice

arc::gen3::arcDevHandle_t arc::gen3::CArcDevice::m_hDevice

protected

Device driver file descriptor

◆ m_pCLog

std::unique_ptr<arc::gen3::CArcLog> arc::gen3::CArcDevice::m_pCLog

protected

Command logger for debug purposes

◆ m_tImgBuffer

arc::gen3::device::ImgBuf_t arc::gen3::CArcDevice::m_tImgBuffer

protected

Kernel image buffer properties

◆ m_tTmpCtrl_SD_100_475K

TmpCtrlCoeff_t arc::gen3::CArcDevice::m_tTmpCtrl_SD_100_475K

protected

Non-linear silicon diode temperature coefficient

◆ m_tTmpCtrl_SD_12_24K

TmpCtrlCoeff_t arc::gen3::CArcDevice::m_tTmpCtrl_SD_12_24K

protected

Non-linear silicon diode temperature coefficient

◆ m_tTmpCtrl_SD_24_100K

TmpCtrlCoeff_t arc::gen3::CArcDevice::m_tTmpCtrl_SD_24_100K

protected

Non-linear silicon diode temperature coefficient

◆ m_tTmpCtrl_SD_2_12K

TmpCtrlCoeff_t arc::gen3::CArcDevice::m_tTmpCtrl_SD_2_12K

protected

Non-linear silicon diode temperature coefficient

◆ m_uiCCParam

std::uint32_t arc::gen3::CArcDevice::m_uiCCParam

protected

Controller configuration parameters value

◆ NOPARAM

constexpr auto arc::gen3::CArcDevice::NOPARAM = static_cast< std::uint32_t >( 0xFF000000 )

staticconstexpr

Invalid parameter value

◆ READ_TIMEOUT

constexpr auto arc::gen3::CArcDevice::READ_TIMEOUT = static_cast< std::uint32_t >( 200 )

staticconstexpr

Timeout loop count for image readout

The documentation for this class was generated from the following files:

C:/Users/streit/Documents/Visual Studio 2022/Projects/ARC_API/3.6.2/CArcDevice/CArcDevice.h
C:/Users/streit/Documents/Visual Studio 2022/Projects/ARC_API/3.6.2/CArcDevice/CArcDevice.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CArcDevice()

◆ ~CArcDevice()

Member Function Documentation

◆ ADUToVoltage()

◆ calculateAverageTemperature()

◆ calculateTemperature()

◆ calculateVoltage()

◆ clearStatus()

◆ close()

◆ command() [1/2]

◆ command() [2/2]

◆ commonBufferPA()

◆ commonBufferSize()

◆ commonBufferVA()

◆ containsError() [1/2]

◆ containsError() [2/2]

◆ continuous()

◆ expose()

◆ fillCommonBuffer()

◆ formatDLoadString()

◆ getArrayTemperature()

◆ getArrayTemperatureDN()

◆ getCCParams()

◆ getCommonBufferProperties()

◆ getContinuousImageSize()

◆ getControllerId()

◆ getCRPixelCount()

◆ getFrameCount()

◆ getId()

◆ getImageCols()

◆ getImageRows()

◆ getLoggedCmdCount()

◆ getNextLoggedCmd()

◆ getPixelCount()

◆ getStatus()

◆ isBinningSet()

◆ isCCD()

◆ isCCParamSupported()

◆ isControllerConnected()

◆ isOpen()

◆ isReadout()

◆ isSyntheticImageMode()

◆ loadControllerFile()

◆ loadDeviceFile()

◆ loadGen23ControllerFile()

◆ loadSmallCamControllerFile()

◆ loadTemperatureCtrlData()

◆ mapCommonBuffer()

◆ open() [1/3]

◆ open() [2/3]

◆ open() [3/3]

◆ reMapCommonBuffer()

◆ reset()

◆ resetController()

◆ saveTemperatureCtrlData()

◆ set2xFOTransmitter()

◆ setArrayTemperature()

◆ setBinning()

◆ setByteSwapping()

◆ setDefaultTemperatureValues()

◆ setImageSize()

◆ setLogCmds()

◆ setOpenShutter()

◆ setSubArray()

◆ setSyntheticImageMode()

◆ setupController()

◆ smallCamDLoad()

◆ stopContinuous()

◆ stopExposure()

◆ toString()

◆ unMapCommonBuffer()

◆ unSetBinning()

◆ unSetSubArray()

◆ voltageToADU()
